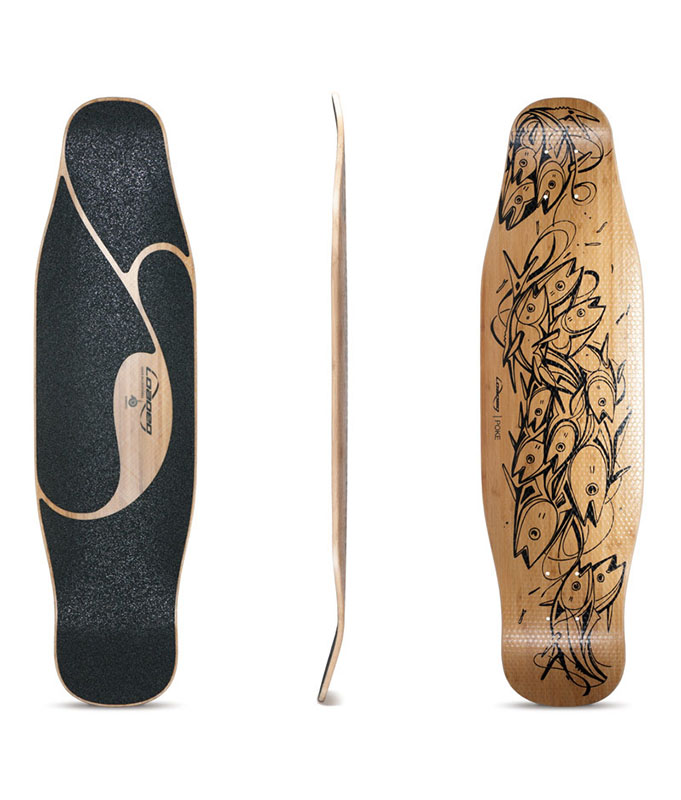

Loaded Boards – Poke – Deck

Continuing the legacy of the Fish and Ceviche, the Poke is the newest phase of an evolving tradition. Featuring highly functional kicktails and a comfortable platform with concave, rocker, and wheel well flares, this versatile urban explorer keeps up with your every whim and makes each outing a creative, dynamic adventure.

Length: 34” / 86 cm
Width: 9.125” / 23.18 cm
Wheelbase: 20.75” / 52.71 cm
Tail: 7.625” / 19.37 cm (tip to inner bolt) @ 18°
Nose: 5.625” / 14.29 cm (tip to inner bolt) @ 13°
Concave: 0.5” / 1.3 cm (radial)
Rocker: 0.1” / 0.3 cm (centered)

CONCAVE
The Poke features 0.5″ of radial concave for solid and quick transitions from rail to rail while pumping, carving, and slashing. Aggressive enough for spirited performance riding yet comfortable enough for the casual commute or boogie through town.

ROCKER
The Fish and Ceviche were both designed with cambered profiles to promote a lively and responsive ride that helped to spring the rider out of hard, aggressive carves. While camber did achieve this goal, we decided to go with a nominal rocker on this incarnation in order to promote a more locked in feel and comfort in a broader range of riding styles. 0.1″ of rocker in the Poke’s standing platform complements the subtle flex of the board and allows you to sink into a comfortable hammock-like interface for both leisurely and aggressive riding. The rocker helps freestyle tricks feel more natural and also creates a solid platform for pushing and commuting.

WHEEL WELL FLARES
Slight concave flares on either end of the standing platform provide tactile reference for your feet, locking you in for quick maneuvers and promoting a high level of board awareness. Additionally, these complex contours enhance the torsional stiffness of the deck and promote better stability and control.

The Poke’s flares are much more subtle than those on the Kanthaka, Chubby or Tesseract, allowing for a comfortable interface for everything from commuting through thrashing.

KICKTAILS
The Poke sports an ample tail for assertive surf-style slashing and plenty of freestyle trickery. The kick angle has been tweaked from the Ceviche’s design to facilitate a quicker and more functional pop.

Moving up to the front of the board, the Poke’s nose has also been widened to create a more comfortable platform for manuals and shuvits. The neck areas between the standing platform and both the nose and tail have been broadened to provide more flexibility and security in foot placement.

DIRECTIONAL SHAPE
The Poke’s shape encourages an aggressive and surfy riding style with lots of drive from the back foot. Gentle cutouts help curb wheelbite without sacrificing comfort and control near the trucks.

NAME & GRAPHICS
The Poke’s graphic was designed by Tomas Guerena, a.k.a. Screw (www.screw.mx). Conceptually, the seafaring creatures illustrated represent lively organic chaos. The fish continues to embody the fluid, whimsical, and dynamic riding style we love to embrace on this board. And like a happy school of fish (or a big bowl of poke), this board is all about sharing in the experience and riding together with your closest companions.

The griptape pattern is cut with an aqueous pattern to subliminally instill an unhealthy obsession with the sea in the mind of the rider, thereby inspiring a surfy and fluid riding style.

HISTORY
The Ceviche was a beloved member of the Loaded family since its birth in 2008 and, like its ancestor the Fish, has inspired us and others to dart about on many a lightsome adventure. But over the years our ever-protean riding styles and tastes in equipment continued to metamorphosize, and by late 2011 we decided that the Ceviche, too, needed to evolve.

As we designed and tasted several rounds of prototypes, we quickly found that there were many desires at play. On one hand, we wanted to see the genealogy of the Fish and Ceviche take a new yet familiar form as a pumpable, agile, and trick-capable city commuter with just the right amount of flex. On the other hand, we also lusted after a stiffer, street-ready double-kick with inclinations toward freeriding and technical sliding.

The latter, as you may have guessed, materialized as the Kanthaka which we released in late 2012. And the former, led by our personal Beagle expedition to explore the origin of this species, has spawned as the Loaded Poke. The Ceviche has been discontinued, and Darwin is rolling in his grave.
The latest reincarnation of the Fish and Ceviche, mellow-mannered cousin of the Kanthaka, and little sibling to the Fattail, the Poke is driven by performance, ergonomics, and accessibility.

CONSTRUCTION
The Poke is built with a vertically-laminated bamboo core with triaxial fiberglass top and bottom skins and a bamboo base veneer. This construction allows for a strong, lightweight deck with responsive flex.

As this board is intended to spend plenty of time both under the feet and in the hands of longboarding freestylers and commuters, we decided to take this opportunity to experiment with new textural characteristics on the deck. The bottom bamboo veneer is sealed under a thin layer of hydrogenated bee pollen cured in a honeycomb pattern that lends a unique tactile quality to the Poke and can fight allergies. Conceptually, this is also a subtle allusion to fish scales and the Poke’s chordate lineage.

standard

Loaded – Truncated Tesseract – Deck

The Tesseract family has expanded to cater to your unique quest for four-wheeled illumination. The Truncated Tesseract integrates rocker, wheel well flares, W concave, and multiple wheelbase options into a lightweight package designed for big mountain roads, high speeds, and snappy slides. It eschews superfluous appendages in favor of a more traditional and race-inspired shape while retaining all the performance-driven ergonomics and construction of its precursor. Escape the three-dimensional confines of contemporary skateboarding and embrace the fourth dimension.

Length: 33” / 84 cm
Width: 9.5” / 24 cm
Wheelbase: 24.5” and 26” / 62.2 cm and 66 cm
Tail: 7.25” / 18.4 cm (tip to inner bolt on 24.5” wheelbase)
Concave: 0.30” / 0.76 cm (at W peak), 0.39” / 0.99 cm (at W trough)
Rocker: 0.33” / 0.84 cm
Wedging angle: 3.5°
Weight: 4.0 lbs / 1.8 kg (with grip)

ROCKER
Symmetrical rocker throughout the deck cups the outer edges of your feet and creates a subtle locked-in sensation, helping you stay firmly planted in slides and facilitating confident and natural movement up and down the length of the board. Additionally, rocker slightly lowers your center of gravity for enhanced stability.

WHEEL WELL FLARES
Flared wheel wells increase wheel clearance and also create surface transitions that provide lateral and longitudinal support for your feet, both inside the trucks and on the kicktail. These flares promote board awareness and keep your feet locked into a compound contoured pocket while sliding, cornering, and tucking.

W CONCAVE
The Tesseract family features an intuitive W concave to enhance rider control in all toeside maneuvers. The central hump is tall yet wide, providing strong lateral support near the transitions without compromising arch comfort. The W concave follows a mellow elliptical shape and fades gradually in amplitude approaching the trucks, disappearing 3/4″ behind the innermost mounting holes. This design allows the inside edges of your feet to nestle up against the W (for toeside slides) while also allowing the outside of your foot to rest in a more radial dish just behind the flared wheel wells (for comfort while tucking on long downhill runs). Progressive yet mild rail concave provides optimal edge control without sacrificing comfort.

DIRECTIONAL SHAPE
The Truncated Tesseract has gone through autotomy, dropping appendages in favor of a more traditional and race-inspired shape while retaining all the performance-driven ergonomics and construction of its precursor. The board retains maximum width all the way back to the bolts for high cornering leverage and security during slides. The nose tapers gently to more effectively accommodate the front foot in a forward-facing speed tuck and is unobtrusive while drafting and riding in tight packs. It’s also pointier.

VARIABLE WHEELBASE
24.5″ and 26″ wheelbase options allow you to fine tune your setup based on your riding style and specific truck geometry. Move your axles in for increased agility, higher traction, and lower swing weight; move them out for greater stability and more lean.

GRAPHICS
When presented a cork canvas to work on, two distinct reference were evident. One was a grandparents’ mid-century cork lamp (strangely out of place in their Francophile home). Second, was an interest and training in the International (Swiss) Style. Given the complexity and diversity of the board, a pursuit of simplicity in the design was in order. A focus on a solid color field cube created interesting and organic looking opacity changes when printed on the cork. This play with natural textures against the contrived cubic print creates an emphasis on the craft of the board as a whole.

WHEELS
The Truncated Tesseract pairs well with many different wheels for freeride applications. We ride Orangatang Fat Frees (65mm) or Keanus (66mm) for lower speeds and to keep swing weight low. Scale up to a mid- to high-diameter wheel such as Orangatang Kilmers (69mm), Stimulus (70mm), Morongas (72.5mm), Cages (73mm), or Durians (75mm) for higher roll speed, smoother performance on rough pavement, and increased longevity.

For downhill applications, the Truncated Tesseract can accommodate up to an 80mm race wheel (such as the Orangatang Kegel). Be sure to fine tune your setup with the appropriate hardware (risers, bushings, washers) to provide the performance you’re after, and always check for wheelbite before you ride.

CONSTRUCTION
Two layers of custom fiberglass/epoxy skins sandwich two vertically-laminated bamboo cores to create a stiff yet light and damp structure. Laminated to the bottom of the board is a layer of cork which provides vibration damping and (as we learned to our surprise during testing) a significant level of durability. The granular, non-directional structure of the cork helps prevent abrasive damage from propagating (in contrast to a traditional wood or bamboo veneer with long, oriented fibers).

The tessellated pattern in the cork is generated in 4-dimensional space and can only be fully understood if you lick it.

standard

Flatspot Weekly 09.02.2016: Subsonic Skateboards, Highway Jam V, Dave’s Hippy Oil and Duck Pucks!

So many rad things have been happening lately! This weekly post is filled with rad new gear we are amped to have on our shelves.

// read more

standard

Flatspot Longboards – Subsonic Skateboards

Subsonic skateboards has been making rad boards since 1999. Based out of Seattle, all their boards are made by three hard working skaters.

// read more

standard

Flatspot Longboards – Triple 8 Brainsavers

Pavement is harder than heads. Thats about all it comes down to. So protect yo’self lest you wreck yo’self!

// read more

standard

Flatspot Weekly 12.29.15 – Abec Flashbacks, Footprint Insoles, Shredmas and Cast Rogues

We hope you all had a merry shredmas! Here are some highlights from the last week

// read more

standard

Flatspot Longboards – Rogue Trucks

Rogue trucks are the brainchild of professional racer Zak Maytum. He has proved to be able to make some of the best bushings and wheels on the market (Venom of course), now he is making trucks!

// read more

standard

Flatspot Longboards x Santacon

This christmas santa went out early and gave the gift of gnar. He was out in full force for santacon and shredded the night away.

// read more

standard

Flatspot Longboards – FootPrint Insoles

FootPrint insoles absorb the impact that is responsible for bruised heals as well as knee and ankle pain. They even have orthotics to support your arches.

// read more

Abec 11 Flashbacks
standard

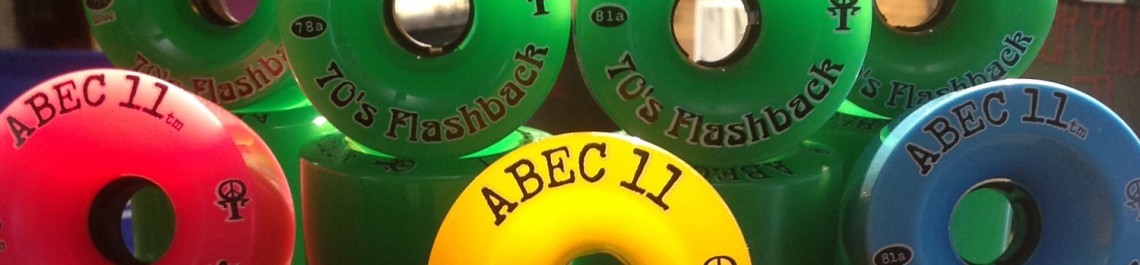

Flatspot Longboards – Abec 11 FlashBacks
